0090.0020 | SCHURTER
Fuse 10.3 x 38 mm, 20 A, gPV, 1 kV (DC), 20 kA breaking capacity, 0090.0020
Unit Price (€ / pc.)
8.0325 € *
Available: 3 pcs.
Leadtime: 18 Weeks **
Total Price:
8.03 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0325 €
10 pcs.
7.3066 €
50 pcs.
6.7235 €
100 pcs.
6.0571 €
*incl. VAT plus shipping costs
**Subject to prior sale

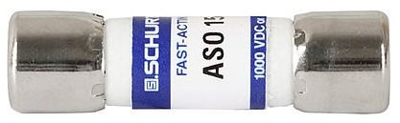

Midget fuse, 0090.0020, SCHURTER
This midget fuse meets the new UL and IEC photovoltaic standards, it contains high breaking capacity of 20 kA @ 1000 VDC with low minimum interrupting rating of 1.35 x In. The midget fuse meets the requirements of IEC 61730-2 for PV module safety and it is UL recognized for 1000 VDC.
Applications
- Photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Technical specifications
| Ausführung | radial | |
| Auslösecharakteristik | gPV | |
| Ausschaltvermögen | 20 kA | |
| Bauform | 10,3 x 38 mm | |
| Nennspannung (DC) | 1 kV | |
| Nennstrom | 20 A |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
