0090.0030 | SCHURTER
Fuse 10.3 x 38 mm, 30 A, gPV, 1 kV (DC), 20 kA breaking capacity, 0090.0030
Unit Price (€ / pc.)
7.1400 € *
Available: 80 pcs.
Leadtime: 19 Weeks **
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1400 €
10 pcs.
6.2832 €
50 pcs.
5.8548 €
150 pcs.
5.6049 €
500 pcs.
5.3074 €
*incl. VAT plus shipping costs
**Subject to prior sale

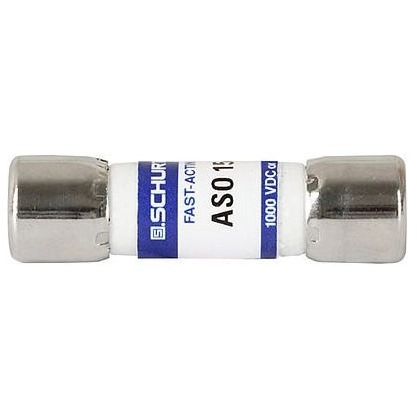

Midget fuse, 0090.0030, SCHURTER
This midget fuse meets the new UL and IEC photovoltaic standards, it contains high breaking capacity of 20 kA @ 1000 VDC with low minimum interrupting rating of 1.35 x In. The midget fuse meets the requirements of IEC 61730-2 for PV module safety and it is UL recognized for 1000 VDC.
Applications
- Photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Technical specifications
| Version | radial | |
| Tripping characteristics | gPV | |
| Breaking capacity | 20 kA | |
| Design | 10.3 x 38 mm | |
| Rated voltage (DC) | 1 kV | |
| Rated current | 30 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
