1241.3334 | SCHURTER

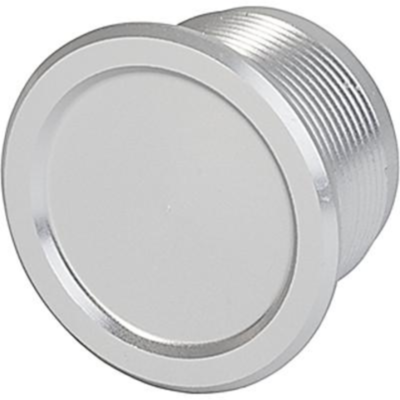

Piezo switch, On-Off, mounting Ø 22 mm, illuminable, red/green, stainless steel, IP67, 1241.3334
Unit Price (€ / pc.)
64.7836 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Piezo switch, 1241.3334, SCHURTER
The piezo switch has a longer switching signal duration with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Schaltfunktion | Ein-Aus | |
| Einbaudurchmesser | 22 mm | |
| Beleuchtbar | Yes | |
| Farbe der Beleuchtung | rot/grün | |
| Anschluss | Litzen | |
| Betätiger | rund | |
| Gehäusematerial | Edelstahl | |
| Gehäusefarbe | silber | |
| Schutzart (IP) | IP67 | |
| Schaltspannung (DC) | 48 V | |
| Schaltspannung (AC) | 32 V | |
| Schaltstrom | 100 mA | |
| Beleuchtungsspannung | 24 VDC |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365011 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
