1241.3670 | SCHURTER
Schurter 1241.3670
Unit Price (€ / pc.)
70.4837 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
70.48 € *
Price list
Quantity
Price per unit*
20 pcs.
70.4837 €
60 pcs.
68.0561 €
100 pcs.
63.1890 €
*incl. VAT plus shipping costs
**Subject to prior sale

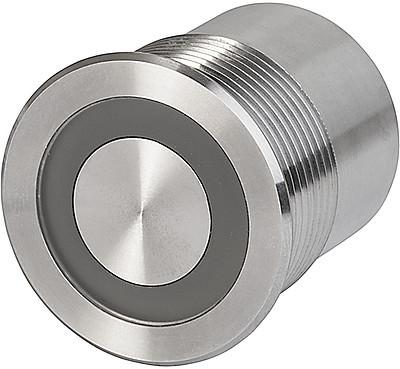

Piezo switch, 1241.3670, SCHURTER
Piezo switch with stainless steel housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Connection | stranded wires | |
| can be illuminated | Yes | |
| Lighting voltage | 28 VDC | |
| Actuator | round | |
| Installation diameter | 30 mm | |
| Farbe der Beleuchtung | blue/green | |
| Color of body | silver | |
| Shell Material | stainless steel | |
| Latching switching function | On-Off | |
| Switching Voltage (AC) | 42 V | |
| Switching Voltage (DC) | 60 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
