3-135-364 | SCHURTER

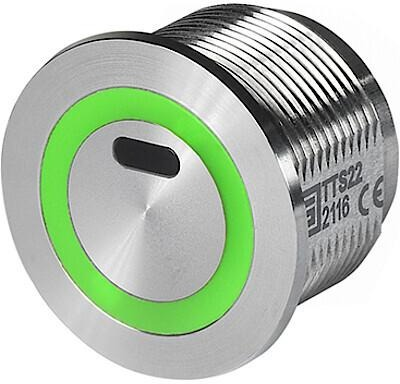

Touchless switch, RGB, round, Stainless steel, silver, 3-135-364
Unit Price (€ / pc.)
78.6947 € *
Available: 7 pcs.
Leadtime: 8 Weeks **
Total Price:
78.69 € *
Price list
Quantity
Price per unit*
1 pcs.
78.6947 €
5 pcs.
74.3274 €
10 pcs.
69.9601 €
20 pcs.
65.5928 €
60 pcs.
61.2136 €
*incl. VAT plus shipping costs
**Subject to prior sale
Touchless switch, 3-135-364, SCHURTER
The 3-135-364 use the highly precise Time-of-Flight (ToF) technology. Light is emitted by a transmitter and reflected by one or more objects. This product is designed for use in industrial environments, it can also be programmed individually, with high precision, so that malfunctions are prevented.
Features
- Protection against unintended switching
- With ring illumination
- Precise operating
- Wearless, no moving parts
- Potential free output contacts
- Vandal resistant
- Insensitive to water and rain
Technical specifications
| Connection | stranded wires | |
| can be illuminated | Yes | |
| Lighting voltage | 5-28 VDC | |
| Actuator | round | |
| Installation diameter | 22 mm | |
| Farbe der Beleuchtung | RGB | |
| Color of body | silver | |
| Shell Material | stainless steel | |
| Latching switching function | On-Off | |
| Switching Voltage (AC) | 42 V | |
| Switching Voltage (DC) | 60 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
