1241.2810 | SCHURTER

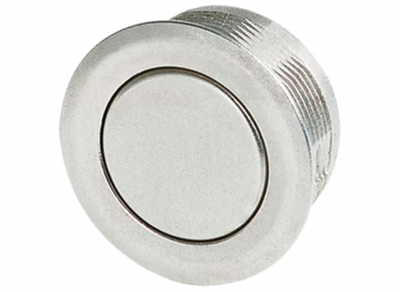

Pushbutton, 1 pole, silver, unlit , 0.125 A/48 V, mounting Ø 19 mm, IP67, 1241.2810
Unit Price (€ / pc.)
9.3058 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
9.31 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3058 €
10 pcs.
8.4728 €
50 pcs.
7.6160 €
100 pcs.
6.8544 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metal switch short stroke, 1241.2810, SCHURTER
Features
- Housing zinc die-cast with nickel plating
- Stainless steel for housing and actuator for use in harsh environments outdoors
- Assembly by mounting with nut
Technical specifications
| Anschluss | Leiterplattenstift | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | No | |
| Einbaudurchmesser | 19 mm | |
| Farbe Betätiger | silber | |
| Kontaktoberfläche | vergoldet | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 0,125 A/48 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85365011 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
