1241.6624.1111000 | SCHURTER

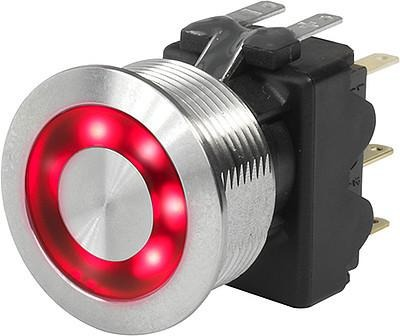

Pushbutton, 1 pole, silver, illuminated (red), 100 mA/30 V, mounting Ø 19.1 mm, IP67, 1241.6624.1111000
As an alternative, we recommend the following item:
Pushbutton, 1 pole, silver, illuminated (red), 100 mA/30 VDC, mounting Ø 19 mm, 19.1 mm, IP66/IP67, 3-145-448
Order No.: 58P7895
Manufacturer: SCHURTER
per pc. 29.2621 € *
*incl. VAT plus shipping costs
Metal switch medium stroke, 1241.6624.1111000, SCHURTER
Features
- Equipped with flat-pin plugs to permit fast connection
- Attractive tactile feedback
- High quality materials
- Long life span
- Clip micro-switch into the saddle
- Secure switch using mounting nut
- For use in harsh environments
Technical specifications
| Anschluss | Schnellanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 19.1 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | rot | |
| Kontaktoberfläche | vergoldet | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 100 mA/30 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365011 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
