1241.6633.1121000 | SCHURTER

Pushbutton, 1 pole, silver, illuminated  (red), 5 A/250 V, mounting Ø 22.1 mm, IP67, 1241.6633.1121000

Order No.: 12G2642
EAN: 4099889189575
MPN:
1241.6633.1121000
Series: MSM 22
SCHURTER

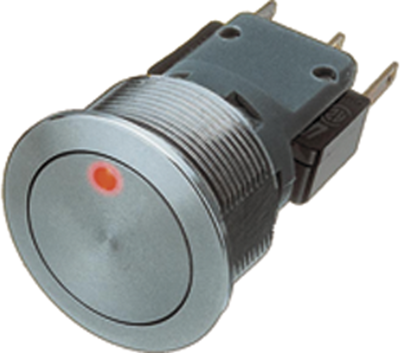

1241.6633.1121000 SCHURTER Pushbutton Switches Image 1
1241.6633.1121000 SCHURTER Pushbutton Switches Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

Pushbutton switches, protected against vandalism, with / without lamp, series MSM 16/MSM 19/MSM 22/MSM 30, type Schurter 1241.

Rugged switch with high degree of protection against vandalism; Switching action: CO contact. Breaking capacity: max. 3.0 A/250 VAC, 5.0 A/125 VAC. Contact resistance (new condition): < 30 mohm. Insulation resistance: > 100 mohm. Bounce time: < 5.0 ms. Actuating force: 4.5 N. Actuating travel: 1.0 mm (16, 19 and 22 mm mounting diameter), 1.2 mm ( 30 mm mounting diameter). Degree of protection: IP 67 (at the front). Protected against external mechanical stress (DIN EN 50102): IK 06 (16 mm mounting diameter), IK 07 (19, 22 and 30 mm mounting diameter). Housing and actuator material: stainless steel. Contacts: silver. Operating temperatures: –25 to +85 °C. Nut and O-ring are included.

With 22 mm mounting diameter, series MSM 22, type 1241.

Technical attributes (type, illumination, illumination color): 1241.6633.1121000, spot illumination, red

Technical specifications
Connection quick connection
Design round
Printed No
illuminated Yes
Installation diameter 22.1 mm
Actuator colour silver
Farbe der Beleuchtung red
contact surface silver-plated
Pin number 1 pole
Latching switching function groping
Breaking capacity 5 A/250 V
Protection class IP67
Vandal-proof Yes
Logistics
Country of origin DE
Customs tariff number 85365011
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
