1241.6824.1121000 | SCHURTER

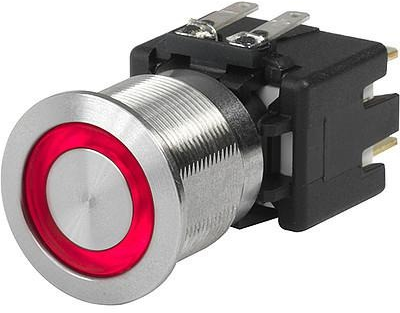

Pushbutton switch, 2 pole, silver, illuminated (red), 12 A/250 V, mounting Ø 19.1 mm, IP65, 1241.6824.1121000
Vandal resistant pushbuttons, with or without illumination, series MSM 19 LA and MSM 22 LA, type Schurter 1241.
Two-pole. Rugged device with high degree of protection against vandalism. Stainless steel. Visible switching state; Mounting diameter: 19 mm. Switching voltage: max. 250 VAC. Switching current: max. 12 A. Contact resistance: max. 100 mohm (1.0 A/12 VDC). Insulation resistance: min. 100 mohm (500 VDC). Lamp supply voltage: 24 VDC. Actuating force: 10 N/m. Actuating travel: 4.5 mm. Degree of protection at the front: IP 64. Protection against external mechanical stress (DIN EN 50102): IK 07. Operating temperatures: - 20 to +85 °C. Supplied with nut and O-ring.

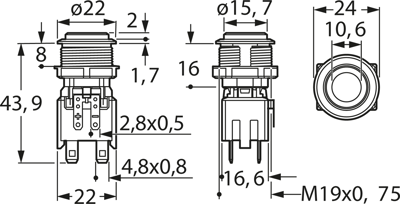

With 19 mm mounting diameter, series MSM 19 LA, type 1241.
Technical attributes (type, signal lamp, illumination color): 1241.6824.1121000, illuminated ring, red
| Anschluss | Schnellanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 19.1 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | rot | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 2-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 12 A/250 V | |
| Schutzart (Betätigungsseite) | IP65 | |
| Vandalengeschützt | Yes |
| Ursprungsland | DE |
| Zolltarifnummer | 85365011 |
| Originalverpackung | Karton mit 10 Stück |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
