1241.8553 | SCHURTER
Pushbutton switch, 2 pole, clear, illuminated (blue), 12 A/250 V, mounting Ø 19.1 mm, IP65, 1241.8553
Unit Price (€ / pc.)
51.2771 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
51.28 € *
Price list
Quantity
Price per unit*
1 pcs.
51.2771 €
5 pcs.
47.6833 €
10 pcs.
44.3513 €
25 pcs.
41.2454 €
*incl. VAT plus shipping costs
**Subject to prior sale

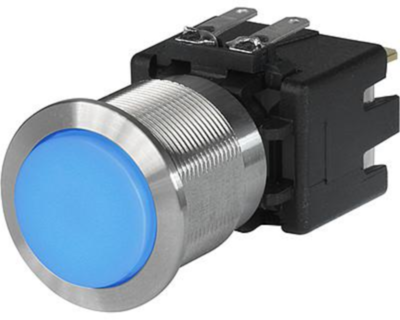

Metal switch, 1241.8553, SCHURTER
Metal switch with ceramic actuator.
Features
- Equipped with flat-pin plugs to permit fast connection
- Attractive tactile feedback
- High quality materials
- Long life span
- For use in harsh environments
Technical specifications
| Connection | quick connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 19.1 mm | |
| Actuator colour | clear | |
| Farbe der Beleuchtung | blue | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 12 A/250 V | |
| Protection class | IP65 | |
| Vandal-proof | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
