1241.8560 | SCHURTER

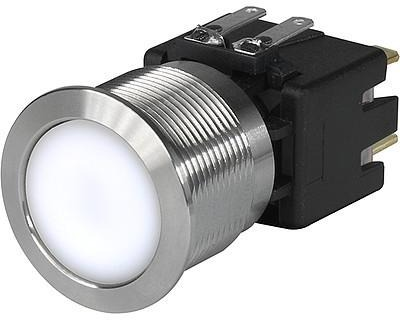

Pushbutton switch, 1 pole, clear, illuminated (white), 12 A/250 VAC, mounting Ø 22 mm, IP65, 1241.8560
As a private customer, you can buy this item as soon as we have it back in stock.
Metal switch, 1241.8560, SCHURTER
Features
- Assembly by mounting with nut and subsequent clipping of the switching element
- Equipped with flat-pin plugs to permit fast connection
- High-quality stainless steel
- IP67 from front side to contact area
- With bright illumination
Applications
- For use in harsh environments
Technical specifications
| Connection | quick connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 22 mm | |
| Actuator colour | clear | |
| Farbe der Beleuchtung | white | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 12 A/250 VAC | |
| Protection class | IP65 | |
| Vandal-proof | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365011 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
