1241.8562 | SCHURTER

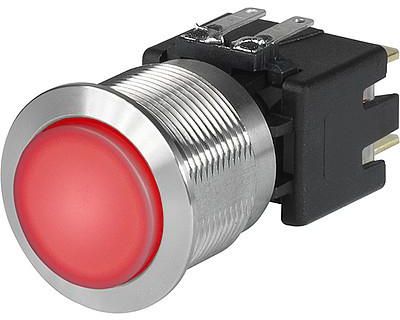

Pushbutton switch, 2 pole, clear, illuminated (red), 12 A/250 VAC, mounting Ø 22 mm, IP65, 1241.8562
Unit Price (€ / pc.)
47.6476 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Metal switch, 1241.8562, SCHURTER
Features
- Assembly by mounting with nut and subsequent clipping of the switching element
- Equipped with flat-pin plugs to permit fast connection
- High-quality stainless steel
- IP67 from front side to contact area
- With bright illumination
Applications
- For use in harsh environments
Technical specifications
| Anschluss | Schnellanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 22 mm | |
| Farbe Betätiger | klar | |
| Farbe der Beleuchtung | rot | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 2-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 12 A/250 VAC | |
| Schutzart (Betätigungsseite) | IP65 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365011 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
