3-100-991 | SCHURTER

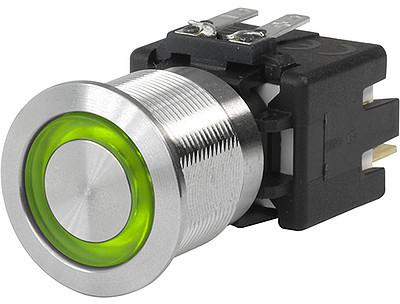

Pushbutton switch, 1 pole, silver, illuminated (green), 16 A/250 VAC, mounting Ø 19 mm, IP65, 3-100-991
Unit Price (€ / pc.)
35.6762 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
35.68 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6762 €
5 pcs.
33.5342 €
10 pcs.
31.1899 €
25 pcs.
28.6909 €
*incl. VAT plus shipping costs
**Subject to prior sale
Metal switch, 3-100-991, SCHURTER
Features
- Assembly by mounting with nut and subsequent clipping of the switching element
- Equipped with flat-pin plugs to permit fast connection
- High-quality stainless steel
Applications
- For use in harsh environments
Technical specifications
| Connection | quick connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 19 mm | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | green | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 16 A/250 VAC | |
| Protection class | IP65 | |
| Vandal-proof | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365011 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
