3-101-032 | SCHURTER
Pushbutton switch, 1 pole, clear, illuminated (red), 16 A/250 VAC, mounting Ø 22 mm, IP65, 3-101-032
Unit Price (€ / pc.)
51.0510 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
51.05 € *
Price list
Quantity
Price per unit*
1 pcs.
51.0510 €
5 pcs.
47.4810 €
10 pcs.
44.1490 €
25 pcs.
41.0669 €
*incl. VAT plus shipping costs
**Subject to prior sale

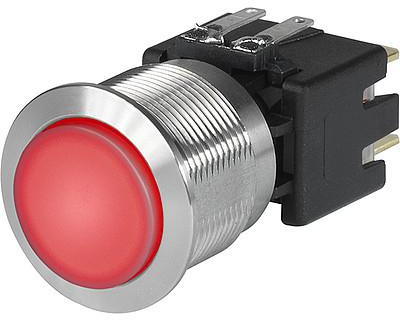

Metal switch, 3-101-032, SCHURTER
Features
- Assembly by mounting with nut and subsequent clipping of the switching element
- Equipped with flat-pin plugs to permit fast connection
- High-quality stainless steel
- IP67 from front side to contact area
- With bright illumination
Applications
- For use in harsh environments
Technical specifications
| Connection | quick connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 22 mm | |
| Actuator colour | clear | |
| Farbe der Beleuchtung | red | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 16 A/250 VAC | |
| Protection class | IP65 | |
| Vandal-proof | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365011 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
