3-101-400 | SCHURTER
Pushbutton switch, 1 pole, silver, illuminated (RGB), 0.1 A/60 V, mounting Ø 16.1 mm, IP67, 3-101-400
Unit Price (€ / pc.)
48.7067 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
48.71 € *
Price list
Quantity
Price per unit*
1 pcs.
48.7067 €
5 pcs.
45.2914 €
10 pcs.
42.1260 €
25 pcs.
39.1748 €
*incl. VAT plus shipping costs
**Subject to prior sale

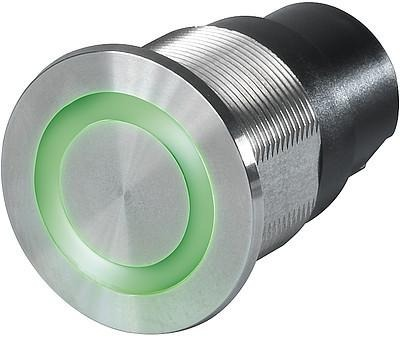

Capacitive switch, 3-101-400, SCHURTER
Capacitive touch sensor with multicolor illumination and protection against unintended switching.
Features
- Protection against unintended switching
- Wearless, no moving parts
- Potential free output contacts
- Laser lettering possible
- Vandal resistant
- Inputs protected against overvoltage
- Galvanic separated outputs
- Constant LED intensity
Technical specifications
| Anschluss | Drahtanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 16.1 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | RGB | |
| Polzahl | 1-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 0,1 A/60 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365011 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
