3-101-416 | SCHURTER

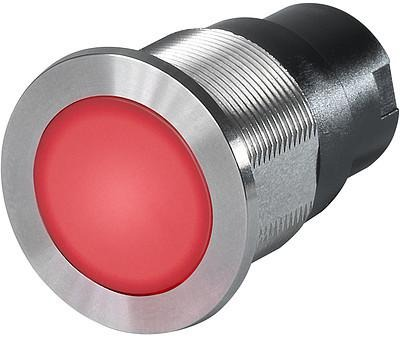

Pushbutton switch, 1 pole, silver, illuminated (red/green), 0.1 A/60 V, mounting Ø 19.1 mm, IP67, 3-101-416
Unit Price (€ / pc.)
46.7313 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Capacitive switch, 3-101-416, SCHURTER
Capacitive touch sensor with multicolor illumination and protection against unintended switching.
Features
- Protection against unintended switching
- Wearless, no moving parts
- Potential free output contacts
- Laser lettering possible
- Vandal resistant
- Inputs protected against overvoltage
- Galvanic separated outputs
- Constant LED intensity
Technical specifications
| Anschluss | Drahtanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 19.1 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | rot/grün | |
| Polzahl | 1-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 0,1 A/60 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365011 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
