3-102-626 | SCHURTER

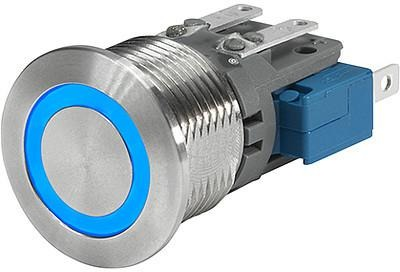

Pushbutton, 1 pole, silver, illuminated (blue), 10 A/250 V, mounting Ø 16.1 mm, IP67, 3-102-626
As an alternative, we recommend the following item:
Pushbutton, 1 pole, silver, illuminated (blue), 10 A/250 VAC, mounting Ø 16 mm, 16.1 mm, IP66/IP67, 3-145-374
Order No.: 58P7868
Manufacturer: SCHURTER
per pc. 31.5231 € *
*incl. VAT plus shipping costs
Metal switch medium stroke, 3-102-626, SCHURTER
Features
- Equipped with flat-pin plugs to permit fast connection
- Attractive tactile feedback
- High quality materials
- Long life span
- Homogeneous illumination
- For use in harsh environments
Technical specifications
| Anschluss | Schnellanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 16.1 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | blau | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 10 A/250 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365011 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
