3-145-623 | SCHURTER
Pushbutton, 1 pole, silver, illuminated (RGB), 6 A/250 VAC, mounting Ø 22 mm, 22.1 mm, IP66/IP67, 3-145-623
Unit Price (€ / pc.)
41.0550 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
41.06 € *
Price list
Quantity
Price per unit*
1 pcs.
41.0550 €
10 pcs.
37.7706 €
25 pcs.
34.7480 €
50 pcs.
31.6183 €
*incl. VAT plus shipping costs
**Subject to prior sale

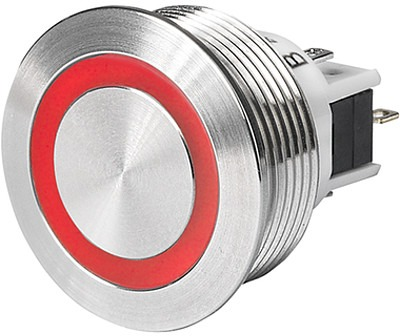

Metal switch, 3-145-623, SCHURTER
The 3-145-623 is a metal switch, RI illuminated with torsion protection for easier positioning. Equipped with flat plug in terminals to permit fast connection.
Features
- Attractive tactile feedback
- High quality materials
- Long life span
Technical specifications
| Anschluss | Schnellanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 22 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | RGB | |
| Kontaktoberfläche | versilbert | |
| min. Geräteausschnitt | 22,1 mm | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 6 A/250 VAC | |
| Schutzart (Betätigungsseite) | IP66/IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365080 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
