3-147-396 | SCHURTER
Pushbutton, 1 pole, white, illuminated (white), 100 mA/30 VDC, mounting Ø 16 mm, 16.1 mm, IP66/IP67, 3-147-396
Unit Price (€ / pc.)
40.4243 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
40.42 € *
Price list
Quantity
Price per unit*
1 pcs.
40.4243 €
10 pcs.
37.1875 €
25 pcs.
34.2125 €
50 pcs.
31.1304 €
*incl. VAT plus shipping costs
**Subject to prior sale

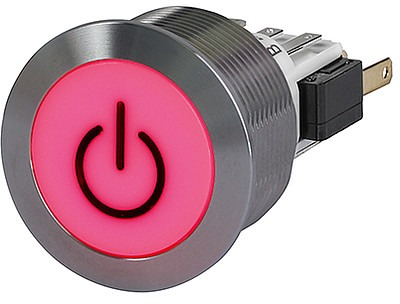

Metal switch, 3-147-396, SCHURTER
The 3-147-396 is a metal switch, AI illuminated with torsion protection for easier positioning. Equipped with flat plug in terminals to permit fast connection.
Features
- Attractive tactile feedback
- High quality materials
- Long life span
Technical specifications
| Connection | solder connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 16 mm | |
| Actuator colour | white | |
| Farbe der Beleuchtung | white | |
| contact surface | gold-plated | |
| min. Geräteausschnitt | 16.1 mm | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 100 mA/30 VDC | |
| Protection class | IP66/IP67 | |
| Vandal-proof | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
