3-147-520 | SCHURTER
Pushbutton, 1 pole, silver, illuminated (red), 100 mA/30 VDC, mounting Ø 22 mm, 22.1 mm, IP66/IP67, 3-147-520
Unit Price (€ / pc.)
30.5830 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
30.58 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5830 €
10 pcs.
28.4410 €
25 pcs.
26.4418 €
50 pcs.
24.3355 €
*incl. VAT plus shipping costs
**Subject to prior sale

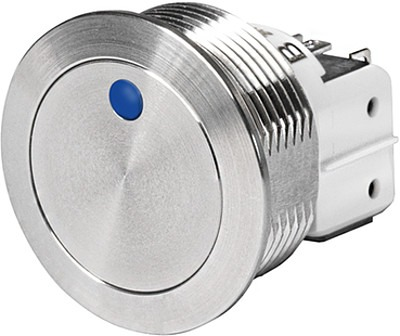

Metal switch, 3-147-520, SCHURTER
The 3-147-520 is a metal switch, PI illuminated with torsion protection for easier positioning. Equipped with flat plug in terminals to permit fast connection.
Features
- Attractive tactile feedback
- High quality materials
- Long life span
Technical specifications
| Anschluss | Lötanschluss | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 22 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | rot | |
| Kontaktoberfläche | vergoldet | |
| min. Geräteausschnitt | 22,1 mm | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 100 mA/30 VDC | |
| Schutzart (Betätigungsseite) | IP66/IP67 | |
| Vandalengeschützt | Yes |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85365011 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
