1241.1112.6096 | SCHURTER

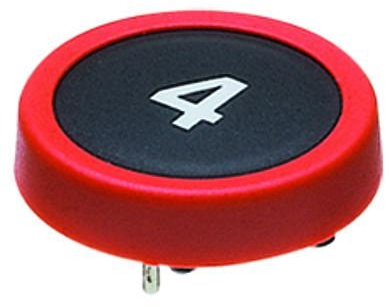

Short-stroke pushbutton, Form A (N/O), 125 mA/48 VDC, unlit , actuator (gray, L 4 mm), 3 N, solder connection, 1241.1112.6096
Unit Price (€ / pc.)
4.6172 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
4.62 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6172 €
10 pcs.
4.2007 €
50 pcs.
3.7723 €
100 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale
Membrane switch, 1241.1112.6096, SCHURTER
The 1241.1112.6096 membrane switch is a unique mechanical switch with tactile feedback, a small mounting depth, and a high lifetime of 5 million actuations.
Technical specifications
| Connection | solder connection | |
| illuminated | No | |
| actuating force | 3 N | |
| Width | 18 mm | |
| Actuator colour | gray | |
| Height | 13 mm | |
| Contact material | silver-plated | |
| Length | 18 mm | |
| Latching switching function | Form A (N/O) | |
| Breaking capacity | 125 mA/48 VDC | |
| actuator length | 4 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
