MW3366 | SEFRAM
TRMS AC/DC clamp meter MW3366, 600 A (DC), 600 A (AC), 600 V (DC), 600 V (AC), opening 35 mm, CAT IV 1000 V, CAT III 1500 V
Order No.: 35K0341
EAN: 3701416003384
MPN:
MW3366
Unit Price (€ / pc.)
216.5800 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

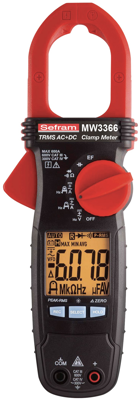

Clamp meter, MW3366, SEFRAM
The MW3366 multimeter clamp is a must-have for any toolbox. It is a multifunctional clamp allowing to realize TRMS AC+DC measurements in current and in voltage. It allows a current measurement up to 600 A with two sensitivities in order to measure low currents with a high accuracy. It can also measure AC and DC voltages up to 600 V. With advanced functions such as frequency measurement, resistance measu_x0002_rement up to 40 MΩ, capacitance measurement up to 2000 μF, continuity measurement or temperature measurement, it will answer to all your inspections or troubleshooting diagnosis needs.
Features
- Diode testing
- Temperature measurement (with supplied type K thermocorple)
- Continuity test with buzzer
- Non-Contact voltage dection (Electric Field detection)
- Auto-ranging mode
- Backlit LCD screen
- Auto-Power-Off mode after 32 minutes of inactivity
- Hold function
Technical specifications
| TRMS possible | Yes | |
| max. measured current value (AC) | 600 A | |
| max. measured current value (DC) | 600 A | |
| max. resistance range | 60 kΩ | |
| Product type | AC/DC-Zangenmessgerät | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT IV 1000 V, CAT III 1500 V | |
| Pliers opening | 35 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
