MW3526BF | SEFRAM

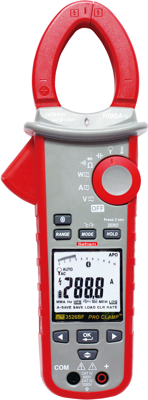

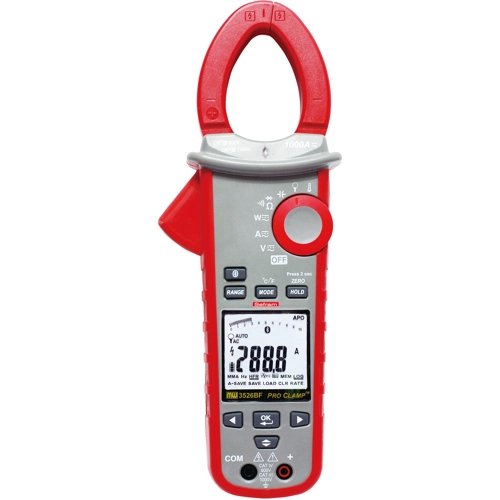

TRMS AC/DC clamp meter MW3526BF, 600 A (DC), 600 A (AC), 1000 V (DC), 1000 V (AC), opening 45 mm, CAT III 1000 V, CAT IV 600 V

Order No.: 35K0343
EAN: 3701416000284
MPN:
MW3526BF
SEFRAM
MW3526BF SEFRAM Clamp Meters
Image may differ
Print
Key Specification:
Produkt-Art AC/DC-Zangenmessgerät
Echteffektivwertmessung (TRMS) möglich Yes
Zangenöffnung 45 mm
Überspannungskategorie CAT III 1000 V, CAT IV 600 V
Download Datasheet Technical specifications
Unit Price (€ / pc.)
380.80 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
380.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
380.80 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory

Power clamp meter, MW3526BF, SEFRAM

The MW3526BF power clamp meter is used for current measurement AC/DC until 600 A (TRMS AC+DC). It features the functions HOLD, SMART HOLD, Min, Max, Moy.

Features

  • Power measurement, PF, THD and harmonics from 1 to 25
  • Frequency measurement
  • Indication of phase rotation
  • Current measurement start
  • Resistance measurement, continuity and diode test
  • Capacity of measurement
  • Lighting of measurement section at jaws opening
  • Voltage detector without contact
  • LCD with backlight
Technical specifications
Echteffektivwertmessung (TRMS) möglich Yes
max. Strommesswert (bei AC) 600 A
max. Strommesswert (bei DC) 600 A
max. Widerstandsmessbereich 100 kΩ
Produkt-Art AC/DC-Zangenmessgerät
Spannungsmessbereich (AC) 1000 V
Spannungsmessbereich (DC) 1000 V
Überspannungskategorie CAT III 1000 V, CAT IV 600 V
Zangenöffnung 45 mm
Show similar products 0
Logistics
Ursprungsland ES
Zolltarifnummer 90303370
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
