SEFRAM7223 | SEFRAM
TRMS digital multimeter SEFRAM7223, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 1 µF to 10 mF, CAT III 1000 V, CAT IV 600 V
Order No.: 35K0363
EAN: 3701416000086
MPN:
SEFRAM7223
Unit Price (€ / pc.)
255.85 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

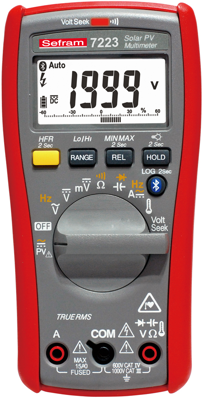

TRMS AC Digital Multimeter, SEFRAM7223, SEFRAM
The multimeter SEFRAM 7223 have a simple and intuitive interface to access the various menus and advanced functions. All basic measurements (V, A Ω, ...) have direct access. With the SEFRAM 7223 multimeter, you will have a voltage measurement function on photovoltaic panels.
Features
- Frequency and capacity measurement
- Volt Sense function
- Continuity test with buzzer
- Bluetooth
- Safety: 600V CAT IV and 1000V CAT III
Technical specifications
| Display Digits | 6000 | |
| Version | AC Multimeter | |
| TRMS possible | Yes | |
| Capacity range | 1 µF bis 10 mF | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 40 MΩ | |
| max. voltage measuring range (AC) | 1000 V | |
| max. voltage measuring range (DC) | 1000 V | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
