SEFRAM9831 | SEFRAM

Handheld Thermography Camera (160 x 120)

Order No.: 35K0377
EAN: 3701416000147
MPN:
SEFRAM9831
SEFRAM9831 SEFRAM Thermal Imagers
Image may differ
Unit Price (€ / pc.)
543.83 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
543.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
543.83 €

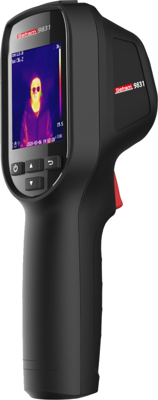

Handheld thermography camera, SEFRAM9831, SEFRAM

The handheld thermography camera, specially designed for temperature measurement in transformer substation. It’s equip_x0002_ped with a 160 × 120 resolution thermal detector. It helps the staff to quickly find the fault according to accurate temperatu_x0002_re measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safe_x0002_ty. The device is mainly applied to various industries, such as Building, HVAC, and auto industry.

Functions

  • Thermogaphy: Device detects the real-time temperature, and display it on the screen
  • Storage: Device is equipped with replaceable memory card to store recorded captured snapshots, and important data
  • Palette: Device supports 4 colors palette
  • Laser Ligh Supplement: Long-distance laser light supplement to point the thermography target

Applications

  • Find easily the bad connections or the overheatings in the electrical cabinets
  • Verifiy the good functionning of heating systems
  • Detect the hot spots of the electrical installation
  • Analyse the thermal bridges on buildings
Technical specifications
Resolution 160 x 120 Pixel
Minimum Focus Distance 0.15 m
max. operating temperature 550 °C
min. operating temperature -20 °C
Field of View 37,2° x 50°
Logistics
Country of origin CN
Customs tariff number 90314990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
