SEFRAM40 | SEFRAM
SEFRAM voltage/continuity tester, SEFRAM40
Order No.: 35K0354
EAN: 3701416002028
MPN:
SEFRAM40
Unit Price (€ / pc.)
38.08 € *
Available: 0 pcs.
Next delivery: 1 pcs. on 2025-05-07
Leadtime: 2 Weeks **

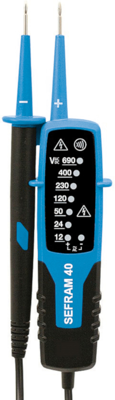

Voltage tester, SEFRAM40, SEFRAM
The SEFRAM40 is an automatic, compact, reliable and robust voltage tester. It can measure voltages up to 690 V,with the following functions: AC voltage measurement, DC voltage measurement, Unipolar phase detection and Measure of continuity.
The voltage tester offers unparalleled ease of use with direct reading via LEDs of voltage and polarity. Clearly visualize with the SEFRAM 40 the presence or absence of voltage on domestic and industrial installations.Instantly determine the voltage level via the integrated LEDs. Robust, the SEFRAM40 is a field device that doesn't fear shocks. Its grip is safe because of its dual-material case.
Technical specifications
| Version | Spannungs-/Durchgangsprüfer | |
| max. voltage measuring range (DC) | 690 V | |
| max. voltage measuring range (AC) | 690 V | |
| Continuity test | 0-500 kΩ | |
| Rated category | CAT II | |
| Display | LED | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
