MFB25F05L | SEPA
DC axial fan, 5 V, 25 x 25 x 10 mm, 2.8 m³/h, 18 dB, ball bearing, SEPA MFB25F05L
Unit Price (€ / pc.)
18.5997 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
18.60 € *
Price list
Quantity
Price per unit*
25 pcs.
18.5997 €
50 pcs.
16.3863 €
100 pcs.
13.9349 €
*incl. VAT plus shipping costs
**Subject to prior sale

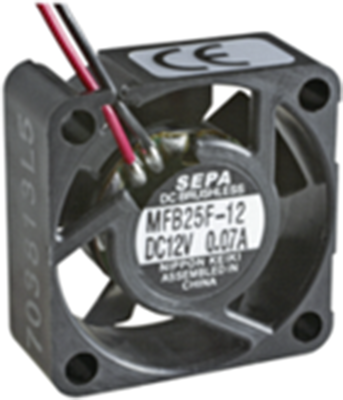

DC Axial fan, MFB25F05L, SEPA
The MFB25F05L is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.
Features
- It is permanently protected electrically against reverse polarity blocking and thermal overloading
- Suitable for battery-powered devices
- Extremely robust
- Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
| Ausführung | DC-Axiallüfter | |
| Breite | 25 mm | |
| Drehzahl | 78000 1/min | |
| Höhe | 25 mm | |
| Lagerart | Kugellager | |
| Nennspannung | 5 V | |
| Schalldruckpegel | 18 db | |
| Tiefe | 10 mm | |
| Volumenstrom | 2.8 m³/h |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 84145925 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
