MFB25F05LA | SEPA

DC axial fan, 5 V, 25 x 25 x 10 mm, 2.8 m³/h, 18 dB, ball bearing, SEPA MFB25F05LA

Order No.: 82B166
EAN: 4099889478006
MPN:
MFB25F05LA
Series: MFB25

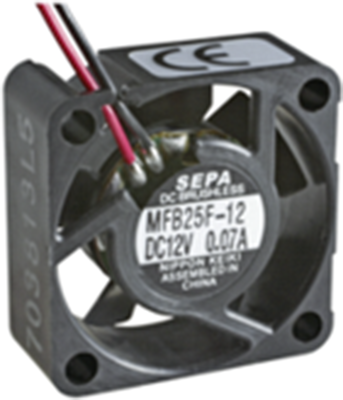

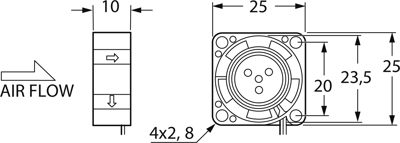

MFB25F05LA SEPA Axial Fans Image 1
MFB25F05LA SEPA Axial Fans Image 2
Image may differ
Unit Price (€ / pc.)
43.5659 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2,178.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
43.5659 €

DC Axial fan, MFB25F05LA, SEPA

The MFB25F05LA is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.

Features

  • It is permanently protected electrically against reverse polarity blocking and thermal overloading
  • Suitable for battery-powered devices
  • Extremely robust
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Ausführung DC-Axiallüfter
Breite 25 mm
Drehzahl 78000 1/min
Höhe 25 mm
Lagerart Kugellager
Nennspannung 5 V
Schalldruckpegel 18 db
Tiefe 10 mm
Volumenstrom 2.8 m³/h
Logistics
Ursprungsland CN
Zolltarifnummer 84145925
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
