MFB25F12A | SEPA

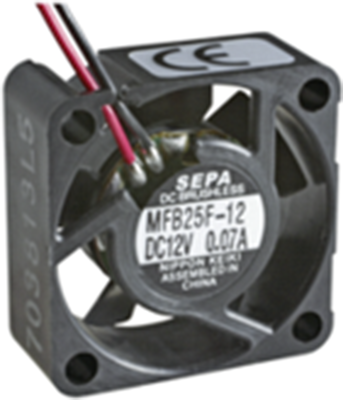

DC axial fan, 12 V, 25 x 25 x 10 mm, 4.1 m³/h, 23 dB, ball bearing, SEPA MFB25F12A

Order No.: 82B168
EAN: 4099889478020
MPN:
MFB25F12A
Series: MFB25
SEPA
MFB25F12A SEPA Axial Fans
Image may differ
Unit Price (€ / pc.)
19.6945 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
19.69 € *
Price list
Quantity
Price per unit*
25 pcs.
19.6945 €
50 pcs.
18.3617 €
150 pcs.
17.5644 €
500 pcs.
16.6600 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC Axial fan, MFB25F12A, SEPA

The MFB25F12A is a high-tech mini fan used for industrial and automotive purposes and has a remarkable conveying capacity despite its small dimensions.

Features

  • It is permanently protected electrically against reverse polarity blocking and thermal overloading
  • Suitable for battery-powered devices
  • Extremely robust
  • Material housing: glass fiber reinforced plastic (PBT)
Technical specifications
Version DC axial fan
Width 25 mm
speed 11200 1/min
Height 25 mm
Type of bearing ball bearing
Rated voltage 12 V
Sound pressure level 23 db
Depth 10 mm
Volume flow 4.1 m³/h
Logistics
Country of origin CN
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
