02520530010 | SES-Sterling

Cable gland, 34 mm, Clamping range 12 to 18 mm, black, 02520530010

Order No.: 12H2914
EAN: 3597470150283
MPN:
02520530010
DV 12/18
Series: HELAVIA DV

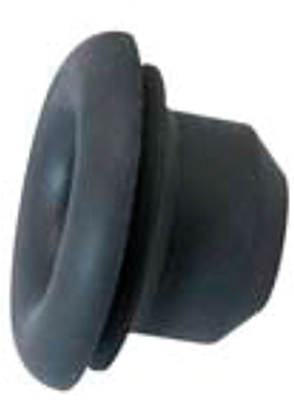

02520530010 SES-Sterling Cable Glands Image 1

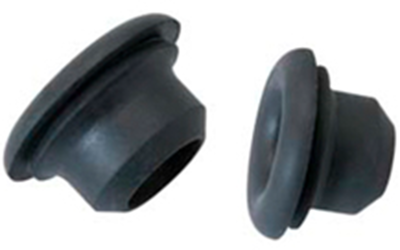

02520530010 SES-Sterling Cable Glands Image 2

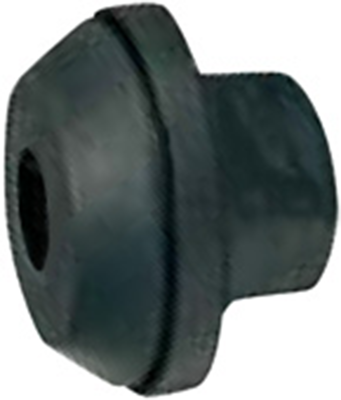

02520530010 SES-Sterling Cable Glands Image 3
02520530010 SES-Sterling Cable Glands Image 4
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Available: 40 pcs.
Leadtime: 10 Weeks **
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
5 pcs.
1.7731 €
15 pcs.
1.7017 €
50 pcs.
1.6303 €
150 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable bushings with strain relief, Helavia DV, type SES 0252.

Can be used as soft feedthrough with strain relief. A gentle and reliable cable strain relief is achieved by attaching a cable tie to the shaft of the bushing; Material: neoprene rubber. Color: black. Application temperature: –30 to +90 °C.

Technical attributes (type, Cable diameter (CD), mounting hole diameter (D)): 0252 0530 010, CD 12 to 18, D 25 mm

Technical specifications
Version Kabelverschraubung
Colour schwarz
Length 22 mm
Material Neopren
max. clamping range 18 mm
max. operating temperature 90 °C
min. clamping range 12 mm
min. operating temperature -30 °C
spanner size 34 mm
Logistics
Country of origin FR
Customs tariff number 40169997
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Imidazolidin-2-thion (2-Imidazolin-2-thiol)
