0603 0060 010 | SES-Sterling

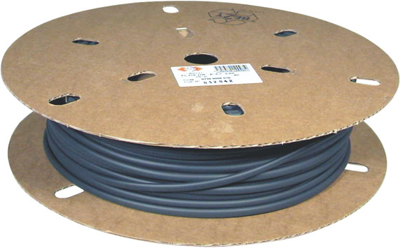

Heatshrink tubing, 2:1, (6.4/3.2 mm), PO, crosslinked, black, 0603 0060 010
Unit Price (€ / mtr.)
1.9873 € *
Available: 0 mtr.
Leadtime: 5 Weeks **
Heat shrink tubing, 0603 0060 010, SES-Sterling
Heat shrinkable tubing PLIOFINE is composed of cross-linked Polyolefin (derived from polyethylene), unlike heat shrinkable sleeving PLIO "R" it cannot be melted or welded and has excellent chemical properties. It is cost effective. Dielectric properties, ageing and weather resistance are excellent, and the sleeving needs no special storing conditions as it remains inert up to +50°C.
Technical specifications
| Farbe | schwarz | |
| Innendurchmesser nach Schrumpfung | 3.2 mm | |
| Innendurchmesser vor Schrumpfung | 6.4 mm | |
| Innenkleber vorhanden | No | |
| Länge | 75 m | |
| Material | PO, vernetzt | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 120 °C | |
| Wanddicke | 0.64 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173200 |
| Originalverpackung | Rolle mit 75 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
