0639 0009 018 | SES-Sterling
Heatshrink tubing, 2:1, (19/9.5 mm), PO, crosslinked, natural, 0639 0009 018
Unit Price (€ / mtr.)
4.2007 € *
Available: 0 mtr.
Leadtime: 5 Weeks **

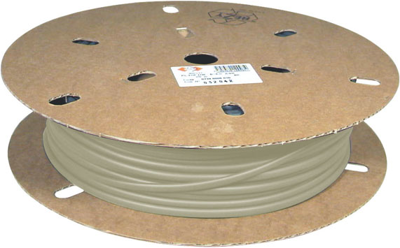

Heat shrink tubing, 0639 0009 018, SES-Sterling
Heat shrinkable tubing PLIOFINE is composed of cross-linked Polyolefin (derived from polyethylene), unlike heat shrinkable sleeving PLIO "R" it cannot be melted or welded and has excellent chemical properties. It is cost effective. Dielectric properties, ageing and weather resistance are excellent, and the sleeving needs no special storing conditions as it remains inert up to +50°C.
Technical specifications
| Colour | natural | |
| Inner diameter after shrinkage | 9.5 mm | |
| Inner diameter before shrinkage | 19 mm | |
| contains glue inside | No | |
| Length | 30 m | |
| Material | PO, crosslinked | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 120 °C | |
| Wall thickness | 0.76 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 30 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
