02010006007 | SES-Sterling

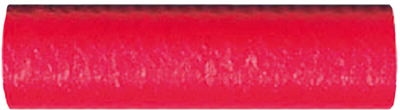

Protection and insulating grommet, inside Ø 7.5 mm, L 30 mm, red, PCR, -30 to 90 °C, 02010006007
Unit Price (€ / pc.)
0.1952 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1952 €
10 pcs.
0.1690 €
100 pcs.
0.1499 €
1000 pcs.
0.1309 €
5000 pcs.
0.1178 €
*incl. VAT plus shipping costs
**Subject to prior sale
Protective and insulating bushings, type SES HELAVIA.
Made of polychloroprene; Operating temperatures: –30 to +90 °C.
For cable diameters from 7.5 to 12 mm.
Technical attributes (type, wall thickness (Wt), length (L), color): A4-FC 007, Wt 0.8, L 30 mm, red
Technical specifications
| Version | protection and insulating grommet | |
| Colour | red | |
| Inner diameter | 7.5 mm | |
| Length | 30 mm | |
| Material | PCR | |
| max. operating temperature | 90 °C | |
| min. operating temperature | -30 °C | |
| Wall thickness | 0.8 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 40091100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
