07400001010 | SES-Sterling

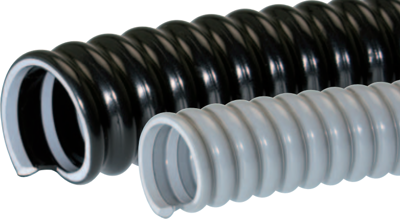

Spiral protective hose, inside Ø 10 mm, outside Ø 14.5 mm, PVC, black, 07400001010
Order No.: 91F9922
EAN: 3597470123027
MPN:
07400001010
ELECTROFLEX 150-010 BK
Series: ELECTROFLEX normal
Unit Price (€ / mtr.)
3.8913 € *
Available: 0 mtr.
Leadtime: 3 Weeks **
Reinforced flexible conduit, 07400001010, SES-Sterling
The ELECTROFLEX tubing is produced with a spiral reinforcement in rigid PVC and is therefore non-metallic. It can be easily cut with a knife or scissors. Very flexible it withstands a very low bending radius. The inside is smooth and allows cable to pass through easily and it can coil around its own diameter without flattening or deforming.
Technical specifications
| Outer diameter | 14.5 mm | |
| Colour | schwarz | |
| Inner diameter | 10 mm | |
| Material | PVC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -5 °C | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
