6011975 | SICK

Proximity switch, built-in mounting M12, 1 Form A (N/O), 30 V (DC), 200 mA, Detection range 4 mm, 6011975

Order No.: 28G144
EAN: 4099889447644
MPN:
6011975
IM12-04NPS-ZW1
Series: IM12
SICK

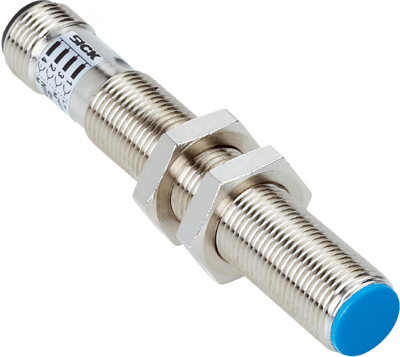

6011975 SICK Proximity Switches, Reed switches Image 1

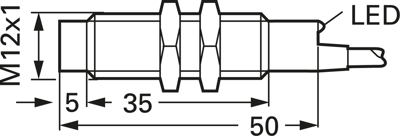

6011975 SICK Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
96.0687 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
96.07 € *
Price list
Quantity
Price per unit*
1 pcs.
96.0687 €
2 pcs.
89.3214 €
5 pcs.
83.0977 €
10 pcs.
77.2548 €
*incl. VAT plus shipping costs
**Subject to prior sale

Inductive proximity sensors, 2.0 or 4.0 mm sensing range, type Sick IM12-.

3-wire proximity sensor, clock mode short-circuit protection, polarity reversal protection, surge pulse suppression. Rugged, nickel-plated brass case with M12 x 1 mm extra-fine thread. High switching rate. Sensing range 2.0 or 4.0 mm; Output: NO. Mounting mode: flush or protruding. Output: PNP. Voltage supply: 10 to 30 VDC. Voltage loss: < 1.2 V. Current consumption (inactive): < 20 mA. Continuous current: < 200 mA. Ready signal delay: < 100 ms. Switching rate: < 2000 Hz. Degree of protection (EN 60529): IP 67. Ambient temperature: –25 to +70 °C. Connection type: PVC cable (3 x 0.22 mm²), 2.0 m, or M12 with 4-pole panel connector. Note: a description of the mating female connectors for the version with male socket is provided in chapter F.

Sensing range 4.0 mm.

Mounting mode: protruding.

Technical attributes (type, connection type): IM12-04NPS-ZW1, 2.0 m cable

Technical specifications
Connection cable connection
Version inductive sensor
diameter 12 mm
Detection range 4 mm
Length 50 mm
Assembly built-in mounting M12
Latching switching function 1 Form A (N/O)
Switching Voltage (DC) 30 V
switching current 200 mA
Degree of protection (IP) IP67
Logistics
Country of origin IT
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
