6011991 | SICK

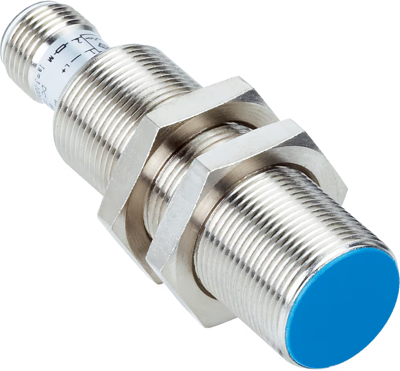

Proximity switch, built-in mounting M18, 1 Form A (N/O), 200 mA, Detection range 5 mm, 6011991
Inductive proximity sensors, 5.0 or 8.0 mm sensing range, type Sick IM18-.
3-wire proximity sensor, clocked short-circuit protection, polarity reversal protection, surge pulse suppression. Rugged, nickel-plated brass housing with M18 x 1 mm extra-fine thread. High switching rate; Sensing range: 5.0 or 8.0 mm. Output: NO. Mounting mode: flush or protruding. Switching output: PNP. Voltage supply: 10 to 30 VDC. Voltage loss: < 1.0 V. Current consumption (inactive): < 20 mA. Continuous current: < 400 mA. Ready signal delay: < 100 ms. Switching rate: < 600 Hz. Degree of protection (EN 60529): IP 67. Ambient temperature: –25 to +70 °C. Connection type: PVC cable (3 x 0.34 mm²), 2.0 m, or M12 with 4-pole connector. Note: a description of the mating female connectors for the version with male connector is provided in chapter F.
Technical attributes (type, connection type): IM18-05BPS-ZC1, M12 panel connector
| Connection | M12-connector | |
| Version | inductive sensor | |

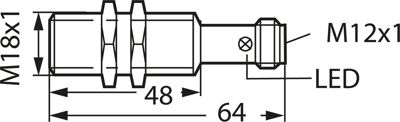

| diameter | 18 mm | |
| Detection range | 5 mm | |
| Length | 64 mm | |
| Assembly | built-in mounting M18 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP67 |
| Country of origin | IT |
| Customs tariff number | 85365019 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
