7900003 | SICK
Proximity switch, built-in mounting M8, 1 Form B (N/C), 200 mA, Detection range 2 mm, 7900003

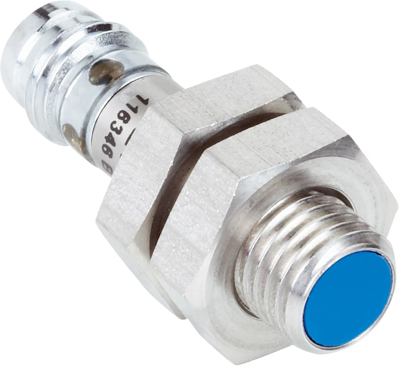

Inductive proximity sensors, 2.0 or 4.0 mm sensing range, type Sick IM08-.
3-wire proximity sensor, clock mode short-circuit protection, polarity reversal protection, surge pulse suppression. Rugged, nickel-plated brass case with M 8 x 1 mm extra-fine thread. High switching rate. Sensing range 2.0 or 4.0 mm; Output: NO or NC. Mounting mode: flush or protruding. Output: PNP. Voltage supply: 10 to 30 VDC. Voltage loss: < 1.2 V. Current consumption (inactive): < 20 mA. Continuous current: < 200 mA. Ready signal delay: < 100 ms. Degree of protection (EN 60529): IP 67. Ambient temperatures: –25 to +70 °C. Connection type: PVC cable (3 x 0.14 mm²), 2.0 m, or M 8 3-pole male socket. Note: a description of the mating female connectors for the version with male socket is provided in chapter F.
Sensing range 2.0 mm.
Mounting mode: flush. Switching rate: < 3000 Hz.
Technical attributes (type, output function, connection type): IM08-02BP0-ZW1, NC, 2.0 m cable
| Connection | stranded wires | |
| Version | inductive sensor | |

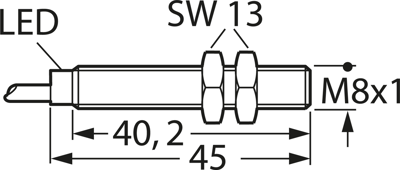

| diameter | 8 mm | |
| Detection range | 2 mm | |
| Length | 45 mm | |
| Assembly | built-in mounting M8 | |
| Latching switching function | 1 Form B (N/C) | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP67 |
| Country of origin | IT |
| Customs tariff number | 85365019 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
