3SU1002-2HM10-0AA0 | Siemens

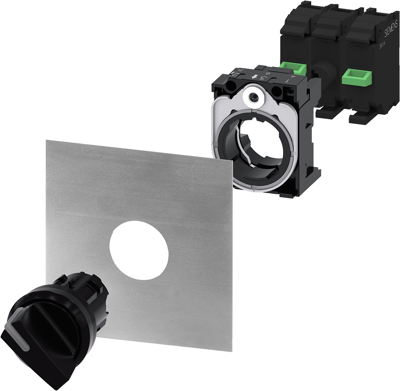

Toggle switch, illuminable, groping, waistband round, black, front ring black, 2 x 45°, trigger position 1 + 0 + 2, mounting Ø 22.3 mm, 3SU1002-2HM10-0AA0
Order No.: 80P8115
EAN: 4047621090856
MPN:
3SU1002-2HM10-0AA0
3SU10022HM100AA0
Unit Price (€ / pc.)
15.0773 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Illuminable selector switch, 22 mm, round, plastic, black, selector switch short, 3 switch positions I
Technical specifications
| Version | toggle switch | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round | |
| Rotation angle | 2 x 45° | |
| Installation diameter | 22.3 mm | |
| Installation height | 28.8 mm | |
| Installation depth | 25.4 mm | |
| Actuator colour | black | |
| Front ring colour | black | |
| Contact function | groping | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Trigger position key | 1 + 0 + 2 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
