3SU1050-1EA10-0AA0 | Siemens

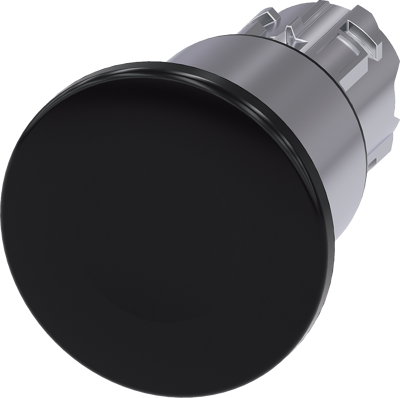

Mushroom pushbutton, unlit, latching, waistband round, black, mounting Ø 22.3 mm, 3SU1050-1EA10-0AA0
Order No.: 27H1084
EAN: 4011209967687
MPN:
3SU1050-1EA10-0AA0
3SU10501EA100AA0
Unit Price (€ / pc.)
55.8467 € *
Available: 0 pcs.
Leadtime: On Request **
Mushroom pushbutton, 22 mm, round, metal, shiny, black, 40 mm, 3 switch positions, latches after pushing in, unlatches by pull-to-unlatch mechanism to center position, after pulling out the button Retraction to center position Mushroom pushbuttons SIRIUS ACT with large actuator for convenient operation using the whole hand.
Technical specifications
| Ausführung | Pilztaster | |
| Beleuchtbar | No | |
| Bundform | rund | |
| Einbaudurchmesser | 22.3 mm | |
| Einbauhöhe | 32 mm | |
| Einbautiefe | 24.6 mm | |
| Farbe Betätiger | schwarz | |
| Kontaktfunktion | rastend | |
| Schutzart (Betätigungsseite) | IP66/IP67/IP69K |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
