8WD5320-5DF | Siemens

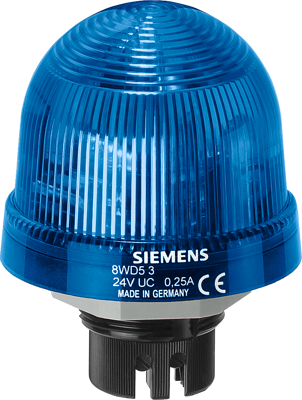

Recessed LED rotating beacon, Ø 70 mm, blue, 24 V AC/DC, IP65, 8WD5320-5DF

Order No.: 80P9735
EAN: 4011209919969
MPN:
8WD5320-5DF
8WD53205DF
Siemens
8WD5320-5DF Siemens Beacons
Image may differ
Unit Price (€ / pc.)
207.5717 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
207.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
207.5717 €

Integrated signal lamp, rotating light, with integrated LED, blue, 24 V AC/DC, Diameter 70 mm Rotating light element SIRIUS 8WD5 including light sources for visual signaling in harsh ambient conditions and in outdoor installations, e.g. for the optical signaling of the operating status in production plants. The integrated signal lamps are extremely resistant to shock and vibrations. Their special shape permits optimum light emission either to the side or upwards. Feet, pipes, adapters, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling column - Modular and with communication capability.

Technical specifications
Version Rotating light
Width 75 mm
diameter 70 mm
Farbe der Beleuchtung blue
Colour blue
Height 66 mm
Length 31 mm
Rated current 40 mA
Degree of protection (IP) IP65
Voltage 24 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85318070
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
