3KC0430-2NE00-0AA0 | Siemens

Mains switch, 4 pole, 100 A, 1000 V, (W x H x D) 309.6 x 126 x 84.5 mm, screw mounting/DIN rail, 3KC0430-2NE00-0AA0

Order No.: 70P5663
EAN: 4001869537467
MPN:
3KC0430-2NE00-0AA0
3KC04302NE000AA0
Series: SENTRON
Siemens
3KC0430-2NE00-0AA0 Siemens Circuit Breakers

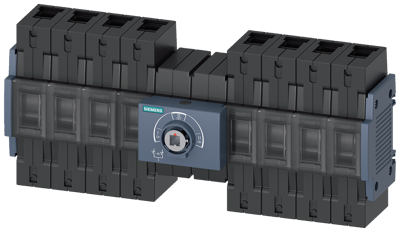

Image may differ
Unit Price (€ / pc.)
349.4197 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
349.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
349.4197 €

3KC04302NE000AA0, Siemens

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 2, 4-pole, Iu: 100 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 100 A, Ie at AC-23 A at 690 V: 100 A, screw and standard mounting rail installation 35 mm, front operating mechanism, centered, without handle, box terminal 3KC transfer switching equipment up to 3200 A for permanent power supply. 3KC transfer switching equipment 3KC from SIEMENS stands for high performance, easy installation and reliable operation. In the portfolio, you will find manually operated MTSE, remotely operated RTSE and automatic ATSE transfer switching equipment in a variety of designs for a wide range of switching tasks. 3KC transfer switching equipment is used in power supply networks to transfer loads between a normal and an alternative source. Switching between two loads is also possible.

Features

  • Short switching times for ASTE and RTSE (up to 160 A <- 180 ms)
  • Can be used flexibly thanks to a compact design and wide range of accessories
  • Improved safety during maintenance works thanks to padlock locking
  • Quick installation on the standard mounting rail with frame sizes up to 160 A
  • Efficient engineering with extensive CAx data
  • Simple documentation with the manual configurator
  • Ideal for a continuous power supply (UPS) eg in computer rooms, production lines in continuous operation or large infrastructure such as airports (RTSE and ATSE variants)
Technical specifications
Width 309.6 mm
Permanent current 100 A
Height 126 mm
Isolation voltage 1000 V
Assembly screw mounting/DIN rail
Pin number 4 pole
Degree of protection (IP) IP20
Depth 84.5 mm
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
