3LD2514-1TL51 | Siemens

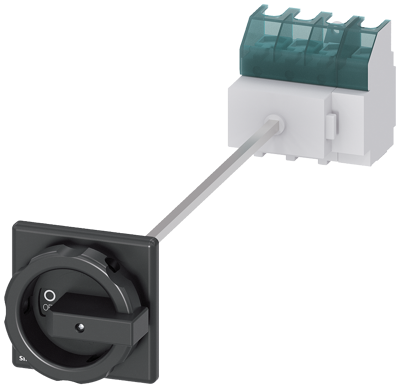

Main switch, Rotary actuator, 4 pole, 63 A, 690 V, (W x H x D) 90 x 106 x 468.5 mm, front installation/DIN rail, 3LD2514-1TL51
Unit Price (€ / pc.)
100.1385 € *
Available: 0 pcs.
Leadtime: On Request **
3LD25141TL51, Siemens
SENTRON, Switch disconnector 3LD, main switch, 4-pole, Iu: 63 A, Operating power / at AC-23 A at 400 V: 22 kW, floor mounting with door coupling, rotary operating mechanism, black, 4-hole mounting of the handle .
Technical specifications
| Actuator | Rotary actuator | |
| Width | 90 mm | |
| Permanent current | 63 A | |
| Height | 106 mm | |
| Isolation voltage | 690 V | |
| Assembly | front installation/DIN rail | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 468.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
