3LD2586-5VD21 | Siemens

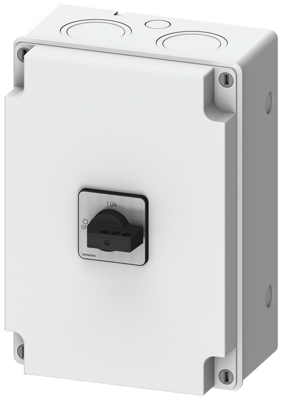

Repair switch, rotary actuator, 6 pole, 63 A, 690 V, (W x H x D) 212 x 302 x 181 mm, front mounting, 3LD2586-5VD21
Unit Price (€ / pc.)
287.9324 € *
Available: 0 pcs.
Leadtime: On Request **
3LD25865VD21, Siemens
SENTRON switch disconnector 3LD in molded-plastic enclosure , repair and maintenance switch with EMC plate, 6-pole Iu: 63A, AC23A 400V at 50/60Hz: 22kW, used with frequency converter: AC20 400V at 0-550Hz: 18,5kW, 1NO + 1NC 20-150ms leading, molded-plastic encapsulation for metric cable gland, knob-operated mechanism, black, lockable in 0- and I-position, incl. cable shield clamps and hose clamps .
Technical specifications
| Betätiger | Drehbetätiger | |
| Breite | 212 mm | |
| Dauerstrom | 63 A | |
| Höhe | 302 mm | |
| Isolationsspannung | 690 V | |
| Montage | Fronteinbau | |
| Polzahl | 6-polig | |
| Schutzart (IP) | IP65 | |
| Tiefe | 181 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
