3LD2704-2TC53 | Siemens

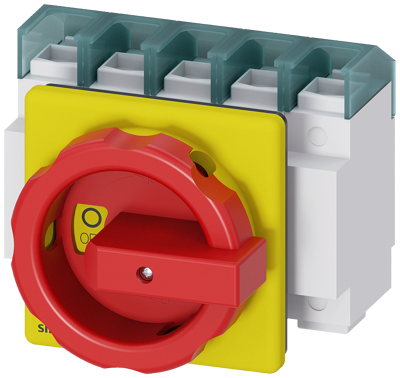

Emergency stop load-break switch, Rotary actuator, 4 pole, 100 A, 690 V, (W x H x D) 90 x 107 x 112.5 mm, front mounting, 3LD2704-2TC53
Unit Price (€ / pc.)
156.4255 € *
Available: 0 pcs.
Leadtime: On Request **
3LD27042TC53, Siemens
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, 100 A, operating power at AC-23 A at 400 V: 37 kW, front-mounted, rotary operating mechanism, Red / yellow, 4-hole mounting of the handle .
Technical specifications
| Actuator | Rotary actuator | |
| Width | 90 mm | |
| Permanent current | 100 A | |
| Height | 107 mm | |
| Isolation voltage | 690 V | |
| Assembly | front mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 112.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
