3LD3454-0TK53 | Siemens

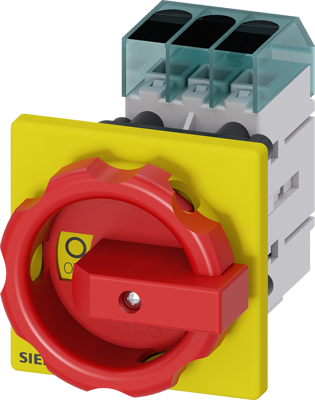

Main switch, Rotary actuator, 3 pole, 63 A, 690 V, (W x H x D) 36 x 60 x 114 mm, fixed mounting, 3LD3454-0TK53
Order No.: 27H1872
EAN: 4001869552057
MPN:
3LD3454-0TK53
3LD34540TK53
Unit Price (€ / pc.)
61.2255 € *
Available: 0 pcs.
Leadtime: On Request **
Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive red / yellow 66x66 mm.
Technical specifications
| Actuator | Rotary actuator | |
| Width | 36 mm | |
| Permanent current | 63 A | |
| Height | 60 mm | |
| Isolation voltage | 690 V | |
| Assembly | fixed mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 114 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
