3LD5010-0TL13 | Siemens

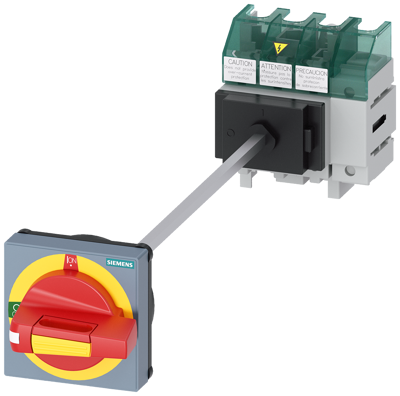

Emergency stop load-break switch, Rotary actuator, 4 pole, 32 A, 690 V, (W x H x D) 80 x 96 x 77 mm, front installation/DIN rail, 3LD5010-0TL13
Unit Price (€ / pc.)
143.1808 € *
Available: 0 pcs.
Leadtime: On Request **
3LD50100TL13, Siemens
SENTRON, Molded case switch 3LD5 UL, Emergency switching-off, 4-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 30A, SCCR 50kA at 480VAC, Operating power at 480VAC 3-phase: 20hp, IEC: 32A, Operating power at AC-23A at 400V: 15kW, floor mounting with door coupling rotary operating mechanism, defeatable, emergency switching-off, 4-hole mounting of the handle, without tolerance compensation, incl. terminal covers for the infeed side .
Technical specifications
| Actuator | Rotary actuator | |
| Width | 80 mm | |
| Permanent current | 32 A | |
| Height | 96 mm | |
| Isolation voltage | 690 V | |
| Assembly | front installation/DIN rail | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 77 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | in_review |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
