3LD5420-0TK13 | Siemens

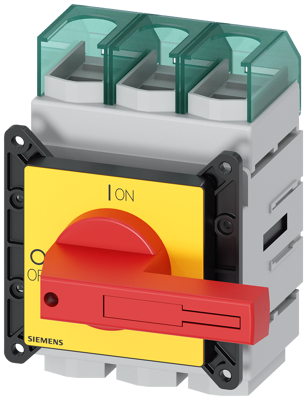

Emergency stop load-break switch, rotary actuator, 3 pole, 100 A, 690 V, (W x H x D) 113 x 178 x 93 mm, front mounting, 3LD5420-0TK13
Unit Price (€ / pc.)
213.0338 € *
Available: 0 pcs.
Leadtime: On Request **
3LD54200TK13, Siemens
SENTRON, Molded case switch 3LD5 UL, Emergency switching-off, 3-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 100A, SCCR 65kA at 480VAC, Operating power at 480VAC 3-phase: 60hp, IEC: 100A, Operating power at AC-23A at 400V: 45kW, front-mounted, rotary operating mechanism, red/yellow, 4-hole mounting of the handle, incl. terminal covers for the infeed side .
Technical specifications
| Betätiger | Drehbetätiger | |
| Breite | 113 mm | |
| Dauerstrom | 100 A | |
| Höhe | 178 mm | |
| Isolationsspannung | 690 V | |
| Montage | Fronteinbau | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP65 | |
| Tiefe | 93 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | in_review |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
