3LD5610-0TL11 | Siemens

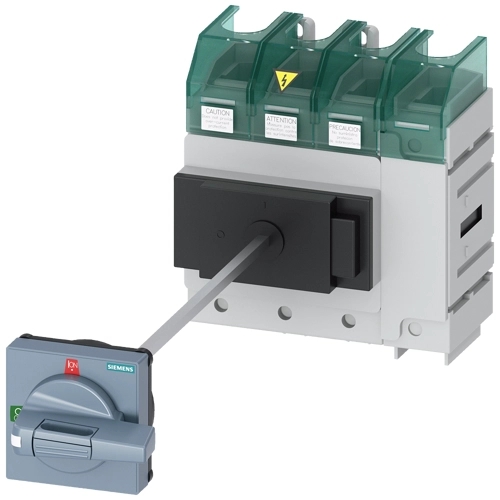

Main switch, rotary actuator, 4 pole, 125 A, 690 V, (W x H x D) 151 x 178 x 158 mm, front mounting, 3LD5610-0TL11
Unit Price (€ / pc.)
327.726 € *
Available: 0 pcs.
Leadtime: On Request **
3LD56100TL11, Siemens
SENTRON, Molded case switch 3LD5 UL, Main switch, 4-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 125A, SCCR 65kA at 480VAC, Operating power at 480VAC 3-phase: 75hp, IEC: 125A, Operating power at AC-23A at 400V: 55kW, floor mounting with door coupling rotary operating mechanism, defeatable, Standard, 4-hole mounting of the handle, without tolerance compensation, incl. terminal covers for the infeed side .
Technical specifications
| Actuator | rotary actuator | |
| Width | 151 mm | |
| Permanent current | 125 A | |
| Height | 178 mm | |
| Isolation voltage | 690 V | |
| Assembly | front mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 158 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | in_review |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
