3LD5610-0TL13 | Siemens

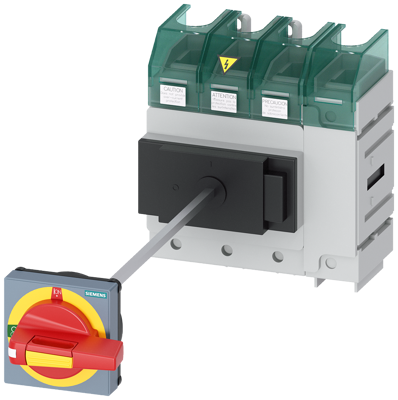

Emergency stop load-break switch, rotary actuator, 4 pole, 125 A, 690 V, (W x H x D) 151 x 178 x 158 mm, front mounting, 3LD5610-0TL13
Unit Price (€ / pc.)
327.726 € *
Available: 0 pcs.
Leadtime: On Request **
3LD56100TL13, Siemens
SENTRON, Molded case switch 3LD5 UL, Emergency switching-off, 4-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 125A, SCCR 65kA at 480VAC, Operating power at 480VAC 3-phase: 75hp, IEC: 125A, Operating power at AC-23A at 400V: 55kW, floor mounting with door coupling rotary operating mechanism, defeatable, emergency switching-off, 4-hole mounting of the handle, without tolerance compensation, incl. terminal covers for the infeed side .
Technical specifications
| Betätiger | Drehbetätiger | |
| Breite | 151 mm | |
| Dauerstrom | 125 A | |
| Höhe | 178 mm | |
| Isolationsspannung | 690 V | |
| Montage | Fronteinbau | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP65 | |
| Tiefe | 158 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | in_review |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
