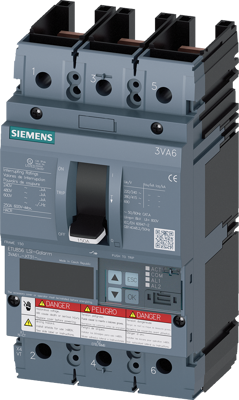

3VA6115-0KT31-0AA0 | Siemens
Circuit breaker, 3 pole, E Curve, 150 A, DIN rail, 3VA6115-0KT31-0AA0
Unit Price (€ / pc.)
2,436.3822 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2,436.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,436.3822 €
Circuit breaker 3VA6 UL frame 150 Breaking capacity Class E 200 kA @ 480 V 3-pole, line protection ETU856,LSI, In=150A overload protection Ir=60A ... 150A Short circuit protection Isd=0,6..10x In, Ii=1,5..12x in neutral protection optional with ext. CT-up to160% ground fault alarm alarm via EFB300 or COM W/O connection.
Technical specifications
| Tripping characteristics | E | |
| Rated current | 150 A | |
| Assembly | DIN rail | |
| Rated voltage (AC) | 690 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide), Silicic acid, lead salt |
| Sustainable | Yes |
